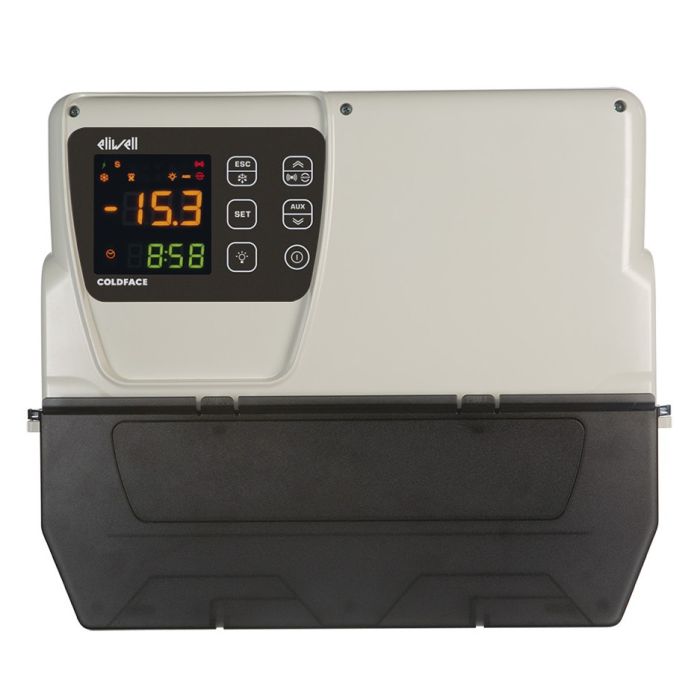

RCNH300DTX1700 Eliwell EWRC 5000 NT Coldface Controller

The Eliwell RCNH300DTX1700 is part of the Coldface AIR series (EWRC 500 NT), a high-performance, all-in-one electronic control panel designed for managing both static and ventilated cold rooms.

Technical Specifications:

• Dimensions: 450x380x160 mm
• Power supply: 230 Vac
• Phase: Single phase
• Enclosure: PC + ABS
• Enclosure rating: IP65
• Installation: Wall
• Display: 3 digits + sign and 4 digits
• Display range NTC: -50...110 °C / PTC: -55...150 °C
• Resolution: 0.1 °C
• Analogue inputs: 3 x NTC / PTC*
• Digital inputs: 2 voltage-free inputs
• Connections: Screw terminals
• RTC: Present
• HACCP: Present
• Connectivity: TTL serial port for HACCP Module and Unicard; RS485** port for Televis supervision system and Modbus RTU systems.
• Operating temperature: -5...35 °C (Max 40 °C non continuous)
• Operating humidity: 10...90 % RH (non condensing)
