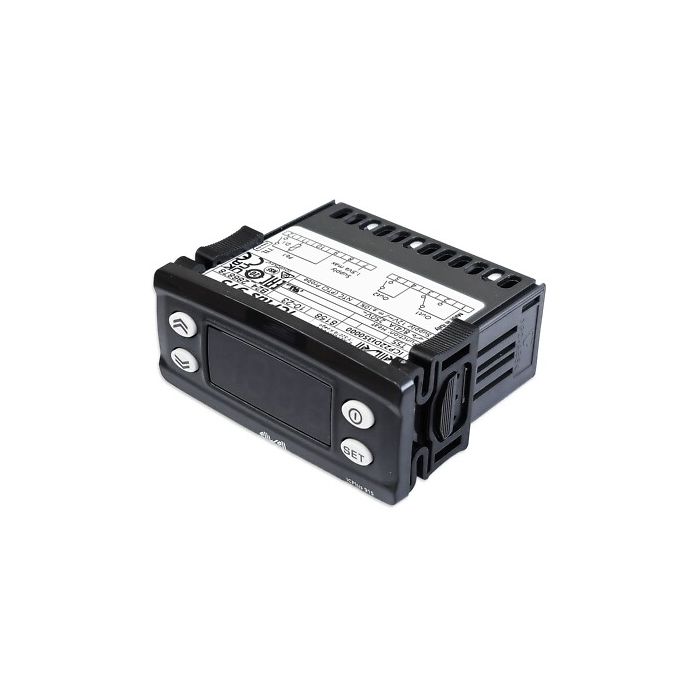

ICP22DI750000 Eliwell ICPlus 915 Temperature Controller

The ICP22DI750000 Eliwell ICPlus 915 is a dual stage temperature controller designed for the precise control of temperature, humidity, or pressure in commercial and industrial environments. Built for reliability and flexibility, it supports multiple sensor types and offers advanced configuration options for a wide range of applications.

 Temperature & Measurement:

• Measurement range: -50°C to +140°C
• Display range:
• NTC: -50°C to +110°C
• PTC: -50°C to +140°C
• Resolution: 0.1°C or 1°C selectable
• Accuracy: ±0.5% of full scale + 1 digit

Power & Electrical:

• Power supply: 230Vac
• Power consumption: max 3W

Environmental Conditions:

• Operating temperature: 0°C to 55°C
• Storage temperature: -30°C to 85°C
• Humidity: 10–90% RH (non-condensing)

Inputs:

• Analogue inputs: 1, Compatible with NTC or PTC probe
• Digital inputs: 1, Clean contact (extra-low safety voltage)

Outputs:

• Total digital outputs: 2
• 1 × SPDT relay (8A, 250Vac)
• 1 × SPST relay (8A, 250Vac)

Display & Interface:

• Display: 3-digit LED with sign
• Serial ports: 1 × TTL

Connectivity:

• TTL communication port
• Compatible with:
• USB Unicard
• TelevisSystem
• Modbus protocol systems

Installation:

• Panel mounting: 71 × 29 mm cut-out
