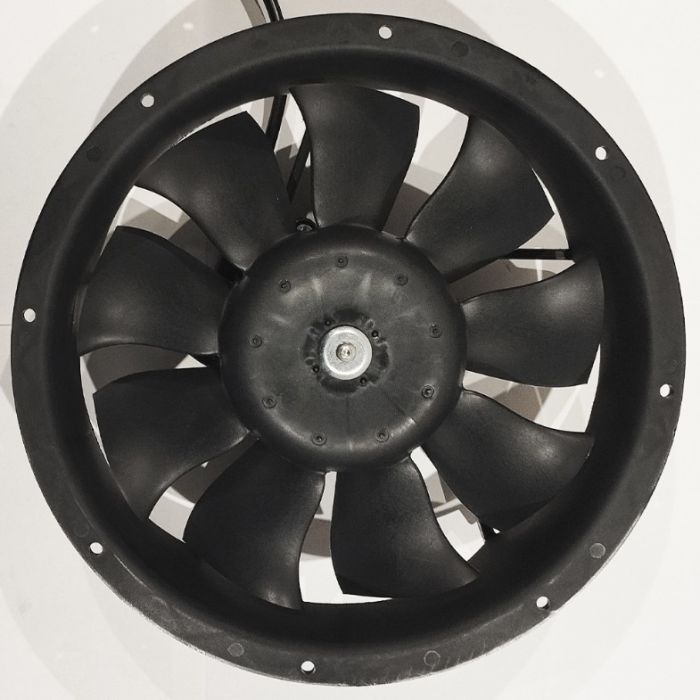

ECF2-8AXD11 ATEX Fanpack CCW 2-Speed (900rpm:1350rpm)

Delivered in 2-3 days, the ECF2-8AXD11 Aofrio Wellington fan packs combine highly trusted ECR2 motors, expertly crafted blades, and sleek, low-profile shrouds. Designed to ensure dependable, ultra-quiet, and energy-efficient airflow, they are considered a reliable choice to meet the demands of commercial refrigeration applications.

ECF2 Aofrio Wellington fanpacks offer:

Quiet operation - as low as 36.5 dBA
High efficiency - up to 70%
Up to 10x more reliablIty
Universal voltage (70-246V) - use one SKU anywhere
57:1 SKU reduction - reduces inventory and boosts profits


OEM Options:

Preprogrammed or factory/field programmable speeds
Realtime continuously variable speed control over third mains wire (no extra cables required)
Custom cable and plug options
Metric, imperial, or custom hardware
3 speed, reversible, or timed-reverse options


Standard Specifications:

Input voltage range 85-264V, 50-60Hz (all models)
Output power range 0-13W
Speed range 300-1800 RPM
Max. input power 20.5W
Max. input current 0.10A (@230V), 0.20A (@115V)
Max power factor 0.95
EMC protection 4000V (per EN61000-6-2)
Insulation class Class A (105°C)
Electronic protection Locked rotor and automatic thermal de-rating also included
Refrigerant compatibility HFC, CO2 and hydrocarbon (per IEC 60335-2-89 Annex BB)
IP rating IP67
Operating temp. range -30°C to +50°C (-22°F to +122°F)
Storage temp. range -40°C to +80°C (-40°F to +176°F)
Weight 0.86kg (1.9lb)
